SPECIFICATIONS :
| Dimensions (LxWxH) |
10.8 x 12.5 x 18.5 cm |
| Construction Materialt |
Polycarbonate |
| Gel Size (WxH) |
8.3 x 7.3 cm / 2 Gels |
| Maximum Buffer Required |
500ml (Minimum 300ml) |
| Electrodes, Wires |
Brass with Gold Plating, Platinum |
| Standard Combs |
11 wells – 1 mm & 1.5 mm (2 Nos each) |
| Standard Spacers |
Glass, 1 mm & 1.5 mm attached with plain plates |
| Maximum Sample Capacity |
30 samples |
| Time Consumed |
1.5-2 hours |
| Recommended Power Supply |
E12377 |

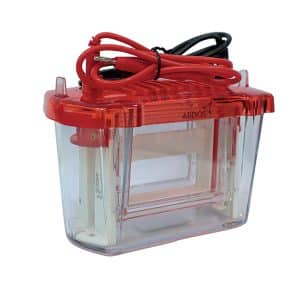

CompactPAGE Mini Moulded Vertical Electrophoresis System, includes – a running tank, lid, buffer dam plate, casting/running module with electrodes and platinum wires, casting base, 2 sets of glass plates of 1mm & 1.5mm thick attached spacers, 2 sets of 11 well combs of 1mm & 1.5mm thick, a pair of connecting cords, replacement gaskets, and gel releasers.
Descriptions
- The all-new CompactPAGE has a single moulded construction making the system lightweight, enduring, and leakproof.
- CompactPAGE comes with a screw-free innovative module to support running and casting so that users don’t have to remove the glass plates after the gel is cast.
- It also has a unique casting system that doesn’t give direct pressure on the glass plates, secondly the frame holds the glass plates strong and saves from breakage.
- The easy casting base comes with the system as standard that doesn’t require any extra effort on screwing the module and seals it completely for leakproof gel casting.
- Glass plates come with attached spacers to support leakproof gel casting.
- Wide range of combs and spacer plate options.
