SPECIFICATIONS :
| Material |
ACRYLIC |
| Unit Dimensions (L x B x H) |
23 x 18 x 27.5 cm |
| Upper Buffer Tank Dimension (L x B x H) |
14 x 7 x 2 cm |
| Lower Buffer Tank Dimension (L x B x H) |
20 x 16 x 19 cm |
| Active Gel Dimension (W x H) |
16 x 14cm |
| Maximum Sample Capacity |
26 |
| Recommended Buffer Volume |
Upper Tank : 250 ml
Lower Tank : 500 ml |
| Water Circulation Facility |
Yes |
| No. of Combs |
13 well Teflon comb 0.5 & 1.0
mm (2 Nos each) |
| No. of Teflon Spacer |
0.5 & 1 mm (4 Nos each) |
| Glass plates |
Notched and Rectangular
(2 Sets) |
| Clamp & Screws |
4 Sets |
| No. of Platinum Electrode |
Red and Black (1 Pair) |
| Gasket |
Fixed |
| Connecting Cord |
Red and Black (1 Each) |
| Recommended power supply |
E12377 & E12378 |

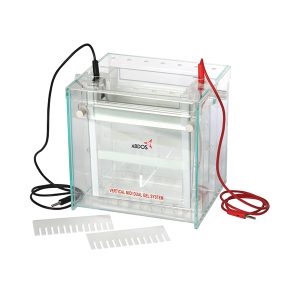

Vertical Midi Dual Gel System Includes – Dual Midi Vertical Assembly, 2 sets of Glass Plates (Rectangular & Notched), 13 wells 2 Combs each of 1 mm & 1.5mm thickness,4 nos. spacers of 1 mm & 1.5 mm Thickness, Gel Casting Stand – 1 No, Supporting Screws-2 No’s, Safety Lid – 1 No, Connecting Cord – 1 Pair
Descriptions
• The system is a twin plate 16 x 14 cm midi-gel unit designed specifically for PAGE techniques requiring self-cast gels, although
precast gels may also be used.
• The system contains standard casting units.
• The system is compatible with standard, 16 x 14cm (W x H) commercially available precast gels.
• Low buffer volume within the inner chamber of the GRM and bottom reservoir economises buffer consumption.
• Combs and spacers available in 0.5 & 1 mm thickness.
• The system has a small footprint area and occupies minimal bench space.
