SPECIFICATIONS :
| Material |
ACRYLIC |
| Unit Dimensions (L x B x H) |
25 x 20 x 27 cm |
| Construction Material |
Acrylic |
| Gel Size (Max) (WxH) |
16x14cm , 1 gel |
| Buffer Required |
450ml |
| Electrodes, Wires |
Brass, Platinum |
| Standard Combs –Teflon |
13 Well-1.0mm and 1.5mm (2Nos each) |
| Standard Spacers- Teflon |
1.0mm and 1.5mm (2Nos each) |
| Maximum Sample Capacity |
20 |
| Time Consumed |
4 to 5 hrs |
| Recommended Power Supply |
E12377 |

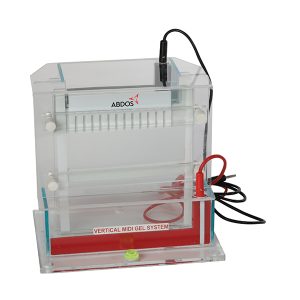

Vertical Midi Slab Gel Electrophoresis System- basic unit includes Vertical Assembly, Glass plates (Rectangular and Notched): 2 sets, Comb 0.5 mm Thickness (13 wells) – 1 No, Comb 1 mm Thickness (13 wells) – 1 No, Comb 1.5 mm Thickness (13 wells) – 1 No., Spacer 0.5 mm Thickness – 2 No’s, Spacer 1.0 mm Thickness – 2 No’s, Spacer 1.5 mm Thickness – 2 No’s, Gel Casting Stand – 1No, Supporting Screws-2 No’s, Safety Lid-1 No, Connecting cord-1 Pair.
Descriptions
- The system is a designed to run One 16x14cm midi hand cast PAGE & SDS PAGE gels.
- Ventilation holes in the system prevent the build-up of condensation during electrophoresis.
- The system comes with standard casting unit, combs & spacers of 1 & 1.5mm thickness & a set of glass plates.
- Low buffer consumption design having small footprint area, occupies minimal lab bench space.
